What Makes Electrical Panel Board Design So Crucial?

Your electrical panel board is like the brain of your building’s power setup—it decides how incoming electricity gets divvied up to lights, machines, ACs, and more. Poor design? You get overloads, fires, or endless trips. Smart design? Seamless power flow, lower bills, and peace of mind.

In our tropical climate, factors like humidity chewing at connections or typhoon surges demand panels that punch above their weight. ETCZ Corp’s engineers have seen it all: a food plant in Laguna whose rushed design caused phase imbalances, spiking energy waste by 20%. Proper design from day one fixed it, saving them thousands monthly. Bottom line: skimping here is like building a house on sand—looks fine until the storm hits.

Step-by-Step: The Electrical Panel Board Design Process

Great design isn’t magic; it’s a disciplined process our ETCZ Corp engineers follow every time. Here’s the roadmap, humanized for clarity—no overwhelming jargon.

1. Understand Your Needs (The Consultation Kickoff)

We start with you. What’s your total load? Single-phase office or three-phase factory beast? Our engineers chat about peak demands (e.g., 500kW for motors), future expansions (add 30% headroom), and site quirks like coastal corrosion near Manila Bay.

They crunch a load study: tally appliances, calculate amps (P = V x I x √3 for three-phase), and map usage patterns. Result? A clear picture avoiding undersized disasters.

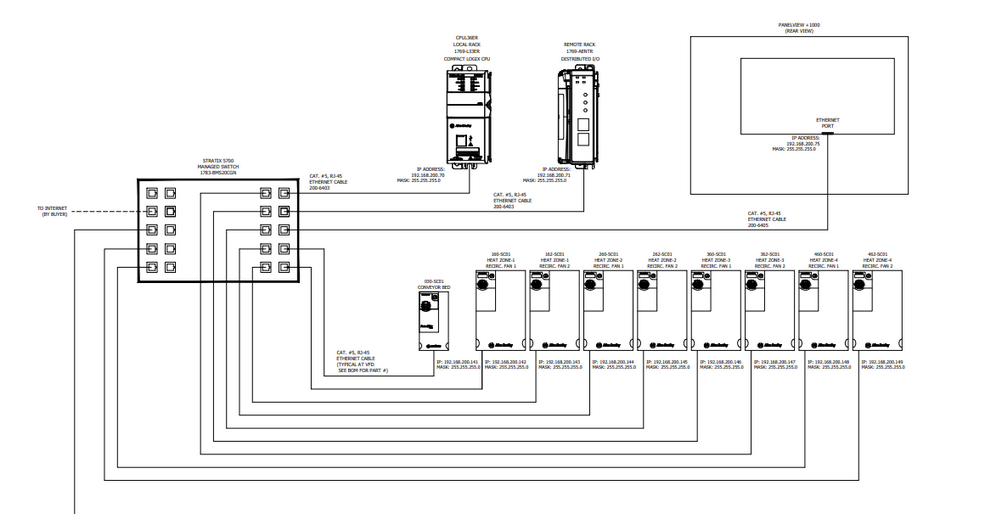

2. Create the Single-Line Diagram (SLD)—Your Power Roadmap

This is the hero document: a simplified sketch showing power flow from main breaker to branches. ETCZ Corp engineers draft it using AutoCAD or ETAP software, including:

• Incoming supply (e.g., 400V, 1600A).

• Main breaker (ACB or MCCB).

• Busbars (copper, sized for fault current like 50kA).

• Feeders to sub-panels, with protections like relays.

Compliance first: PEC rules on clearances (1m working space), grounding, and labeling ensure BFP inspectors nod approval.

3. Component Selection: Picking the Right Tools for the Job

No one-size-fits-all. Our pros spec:

• Breakers: Schneider or ABB molded-case for reliability, trip-rated for your fault levels.

• Busbars: Electrolytic copper, insulated with heat-shrink for humid PH air.

• Metering/Surge Protection: Smart meters for Meralco billing, SPDs for lightning-prone areas.

• Enclosure: IP54-rated stainless for dusty factories.

They balance cost vs. lifespan—e.g., upgrading to arc-fault breakers cuts fire risk by 70%.

4. Layout and Mechanical Design: Fitting It All Safely

Like Tetris for electricians. Engineers optimize:

• Front view: Breakers grouped logically (lights top, heavies bottom).

• Clearances: 50mm between phases per PEC.

• Ventilation: Louvers or fans to beat heat buildup.

• Cable entry: Glands bottom/top to dodge water ingress.

3D modeling spots clashes early, saving fabrication headaches.

5. Protection and Coordination: The Safety Net

Design shines here. Engineers ensure breakers “talk”—upstream trips before downstream, avoiding blackouts. They factor:

• Short-circuit ratings (IEC 60947).

• Ground-fault relays for wet areas.

• Overload curves tuned to your motors.

6. Review, Simulate, and Document

Final polish: Peer review, load-flow simulations (via ETAP), and full docs—SLD, BOM, install guide. ETCZ Corp hands you stamped drawings, ready for permits.

This process takes 1-2 weeks for standard jobs, longer for mega-projects. It’s why our designs ace DOLE audits first time.

Why Philippine Conditions Demand Expert Design

Our archipelago’s no picnic for electrics:

• Humidity/Salt: Corrosion demands epoxy coatings, sealed glands.

• Typhoons/Brownouts: Surge arrestors, auto-transfer switches.

• Overloads: Aircons + welders? Design for diversity factor (not all peak together).

• Compliance Crunch: PEC 2020 updates tightened arc-flash rules; BFP wants EGCs everywhere.

ETCZ Corp’s engineers stay ahead, integrating these into every design. One client in Pampanga dodged a ₱1M fine thanks to our PEC-compliant SLD during expansion.

ETCZ Corp’s Edge: Professional Engineers You Can Trust

What sets us apart? ETCZ Corp has professional and experienced electrical engineers—PRC-licensed, with 10+ years tackling PH-specific challenges. They’ve designed panels for 200+ sites, from SME shops to 10MW factories.

Meet Engr. Reyes (sample): 15 years, PEC expert, loves optimizing for energy savings. Our team uses tools like:

• ETAP for simulations.

• Custom spreadsheets for load calcs.

• Partnerships with ABB/Schneider for cutting-edge gear.

Custom? Absolutely. Need VFD integration or solar tie-in? We design it seamless. Result: Panels that scale, saving 15-25% on ops costs.

Case Study: Quezon City Mall Revamp
Overloaded legacy panel caused weekly trips. Our engineers redesigned a 2000A MDB—balanced phases, added metering. Post-install: Zero trips, 12% energy drop. Client: “Game-changer.”

Common Design Pitfalls (And How to Dodge Them)

Even pros slip—here’s what we’ve fixed:

• Undersizing: Load calcs ignore growth. Fix: Add 25-50% spare ways.

• Poor Coordination: Breakers fight. Fix: Time-current curves.

• Ignore Environment: Indoor rating outdoors. Fix: NEMA 3R/IP55.

• Messy Docs: No labels. Fix: As-builts with QR codes.

• DIY Disaster: Non-engineers miss grounding. Fix: Hire PRC pros.

Skip these, and you’re flirting with fires or fines.

Cost Factors in Panel Board Design

Design fees? 5-10% of total project, but pays dividends:

• Simple office: ₱20K-50K.

• Industrial 1000A+: ₱100K+, including sims.

Influencers: Complexity, software sims, revisions. ETCZ Corp quotes transparently—often free initial consult.

Best Practices for Your Next Project

• Start early: Design before construction.

• Demand SLDs: Insist on stamped versions.

• Simulate: Catch issues virtually.

• Future-proof: Modular layouts.

• Partner pros: Like ETCZ Corp’s engineers.
