Industrial Electric Motor Services in the Philippines: Rewinding, Reconditioning, and Preventing Motor Failure
Electric motor rewinding Philippines
Electric motors are the workhorses of Philippine industry. They drive pumps, compressors, fans, conveyors, mixers, extruders, and hundreds of other critical pieces of production equipment. When a motor fails, production stops — sometimes instantly, sometimes with catastrophic collateral damage to connected equipment. Yet motor failures are rarely sudden, random events. They develop over time, driven by electrical stress, mechanical stress, thermal stress, and environmental contamination. With proper maintenance, monitoring, and timely repair or reconditioning, the vast majority of industrial motor failures can be prevented or managed with minimal impact on production. ETCZ Corp provides comprehensive electric motor services for industrial companies throughout the Philippines — from emergency motor rewinding to systematic motor maintenance programs that maximize motor life and minimize production disruptions. This guide covers everything you need to know about industrial electric motor services.
The Anatomy of Motor Failure: Why Industrial Motors Break Down
Understanding why motors fail is the first step toward preventing those failures. ETCZ Corp’s motor service engineers have analyzed hundreds of motor failures in Philippine industrial facilities. Here is what we have found:
WINDING INSULATION FAILURE (30-40% of motor failures): The copper windings inside a motor are coated with insulating varnish that separates the turns of wire from each other and from the iron core. Over time, this insulation deteriorates due to thermal cycling, voltage stress, moisture absorption, chemical contamination, and mechanical vibration. When insulation fails, the result is a short circuit between turns or between winding and ground — which appears as a smoking, burned motor.
BEARING FAILURE (40-50% of motor failures): The bearings that support the motor’s rotor are subject to continuous mechanical stress. When bearings fail due to inadequate lubrication, overloading, misalignment, contamination, or normal wear, the results range from noisy, vibrating operation to complete seizure of the motor shaft.
OVERHEATING (contributing factor in most failures): Excessive heat is the enemy of motor insulation. For every 10°C rise in winding temperature above the motor’s thermal class rating, insulation life is reduced by approximately 50%. Overheating causes include overloading, insufficient ventilation, high ambient temperature, blocked cooling air passages, and running with single-phase power (phase loss).
CONTAMINATION: In industrial environments, motors are exposed to dust, moisture, chemicals, and other contaminants that can penetrate the enclosure and attack windings, bearings, and cooling systems.
PHASE LOSS: When one phase of a three-phase supply is lost — due to a blown fuse, a tripped breaker, or a loose connection — the motor continues to run on two phases, drawing much higher current than normal and overheating rapidly. Phase loss protection is a critical safety requirement for industrial motors.
SURGE AND TRANSIENT VOLTAGES: Voltage transients from switching events, lightning, or VFD switching can puncture motor winding insulation, causing immediate or premature failure.

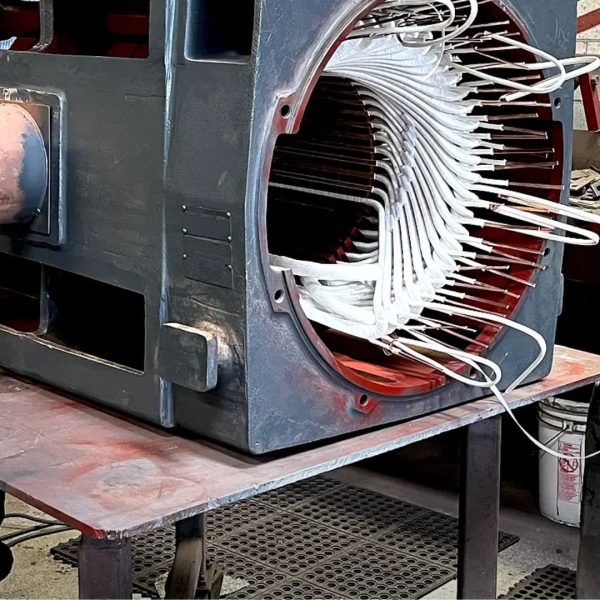

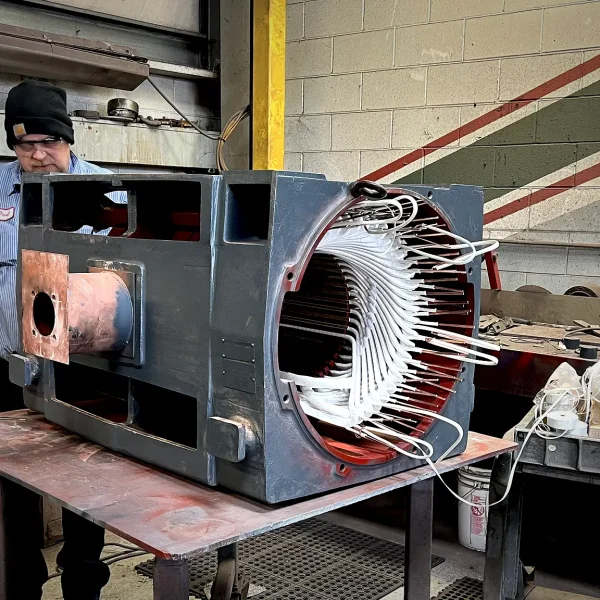

Motor Reconditioning: Restoring Performance Without Full Rewinding
Not every motor that needs service requires full rewinding. Motor reconditioning refers to the comprehensive mechanical and electrical refurbishment of a motor that does not have winding failure — or that has minor winding issues that can be addressed without complete rewinding.
ETCZ Corp’s motor reconditioning services include:
BEARING REPLACEMENT: All bearings are replaced with new, original-specification bearings. Bearing housing condition is inspected and, where necessary, restored by specialized welding and machining processes.
SHAFT REPAIR AND RECONDITIONING: Motor shafts that have worn bearing seats, damaged keyways, or other mechanical damage can often be repaired and reconditioned rather than replaced.
ENCLOSURE RECONDITIONING: Corrosion, physical damage, and deteriorated gaskets and seals are addressed. The motor enclosure is cleaned, derusted, primed, and painted to restore its environmental protection rating.
COOLING SYSTEM RESTORATION: Cooling fins are cleaned, and cooling fans are inspected and replaced as needed to restore proper thermal performance.
WINDING TREATMENT: Windings that show early signs of insulation deterioration but have not yet failed can be treated with varnish impregnation to extend their service life.
COMPREHENSIVE TESTING: Reconditioned motors are subjected to the same comprehensive test program as rewound motors, with documented test results.
Motor reconditioning typically costs 30-60% of a full rewinding and can restore a motor to like-new performance. It is an especially attractive option for specialty motors with long lead times for replacement windings.
Motor Predictive Maintenance: Preventing Failure Before It Happens
ETCZ Corp’s approach to electric motor management goes beyond repair and reconditioning. We help industrial facilities implement comprehensive motor predictive maintenance programs that detect developing problems before they cause production stoppages.
Our motor predictive maintenance program includes:
INSULATION RESISTANCE TESTING: Annual or semi-annual measurement of motor winding insulation resistance using a high-voltage megohmmeter. Trending insulation resistance readings over time allows early detection of insulation deterioration.
POLARIZATION INDEX TESTING: A more sensitive version of the insulation resistance test that provides better insight into insulation condition.
VIBRATION ANALYSIS: Regular vibration measurement and analysis detects developing mechanical problems — bearing wear, misalignment, unbalance, looseness — at an early stage when they can be corrected cheaply and before they cause winding damage.
INFRARED THERMOGRAPHY: Thermal imaging of motor surfaces and connection points detects overloading, bearing overheating, and other thermal anomalies.
MOTOR CURRENT SIGNATURE ANALYSIS: Analysis of the motor’s current waveform can detect rotor bar problems, air gap eccentricity, and other developing faults.
OIL ANALYSIS: For large motors with oil-lubricated bearings, periodic oil analysis can detect bearing metal contamination that indicates developing bearing wear.
ETCZ Corp provides motor predictive maintenance services as a standalone service or as part of our comprehensive industrial electrical PMS program.
FAQ
Industrial electric motor services include motor inspection, rewinding, reconditioning, alignment, testing, and preventive maintenance to ensure efficient and reliable operation of motors used in factory equipment and production systems.
Motor rewinding is recommended when the motor windings are damaged but the core and mechanical components are still in good condition. It is often more cost-effective than full replacement for high-value industrial motors.
Motor reconditioning typically includes cleaning, bearing replacement, shaft inspection, insulation testing, rewinding (if needed), and performance testing to restore the motor to optimal working condition.
Common causes include overheating, overloading, poor electrical connections, voltage imbalance, lack of maintenance, and environmental factors such as dust, moisture, and contamination.
Factories can prevent motor failure through regular preventive maintenance, load monitoring, proper alignment, thermography inspection, and timely repair services provided by experienced electrical contractors like ETCZ Corp.
ETCZ Corp
Your Trusted Electrical Partner
Don’t let a failed motor shut down your production. ETCZ Corp provides fast, reliable motor rewinding and reconditioning services throughout the Philippines. Contact us now for a free motor assessment and repair quotation.
