Why Electrical Fires and Failures Often Go Undetected

Most electrical issues develop gradually. Over time:

• Connections loosen due to vibration

• Conductors oxidize or corrode

• Loads increase beyond original design

• Components age and lose efficiency

As resistance increases, temperature rises.
If left uncorrected, this heat can:

• Damage insulation

• Degrade breakers and contacts

• Ignite nearby materials

• Cause sudden power failure

Electrical thermography allows these risks to be identified long before smoke, sparks, or shutdowns occur.

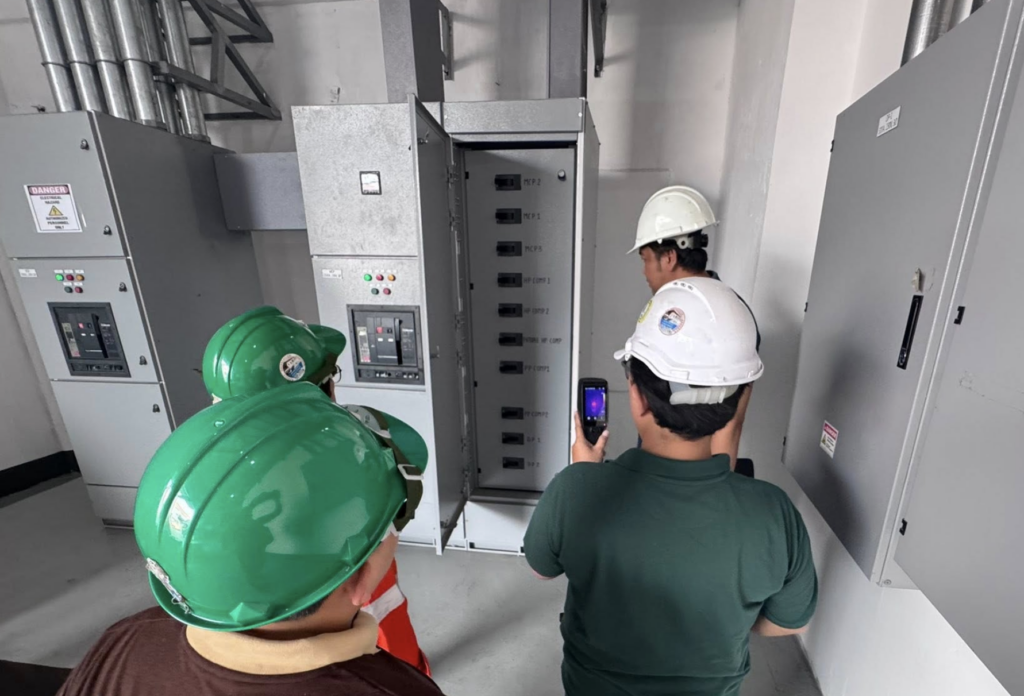

What Is Electrical Thermography Inspection?

Electrical thermography inspection is a non-contact, non-invasive diagnostic process that uses infrared cameras to detect abnormal heat patterns in energized electrical equipment.

During a thermal inspection of electrical panels, technicians can “see” temperature differences that indicate:

• Loose or high-resistance connections

• Overloaded circuits

• Phase imbalance

• Failing components

• Undersized conductors

This inspection is performed while equipment is operating, providing real-world insight without interrupting operations.

Why Electrical Thermography Is Critical for Fire Prevention in the Philippines

Electrical fire prevention in the Philippines requires special attention due to local operating conditions.

High Ambient Temperatures

Electrical components already run warm. High outdoor temperatures push them closer to failure thresholds.

Humidity and Corrosion

Moisture increases resistance at connections — one of the main causes of overheating electrical connections.

Aging Electrical Installations

Many facilities operate with electrical systems that have exceeded their original design life.

Increasing Electrical Loads

Facility expansions and new equipment often overload existing panels and feeders.

Because of these factors, electrical fire prevention in the Philippines increasingly relies on proactive tools like thermography rather than reactive repairs.

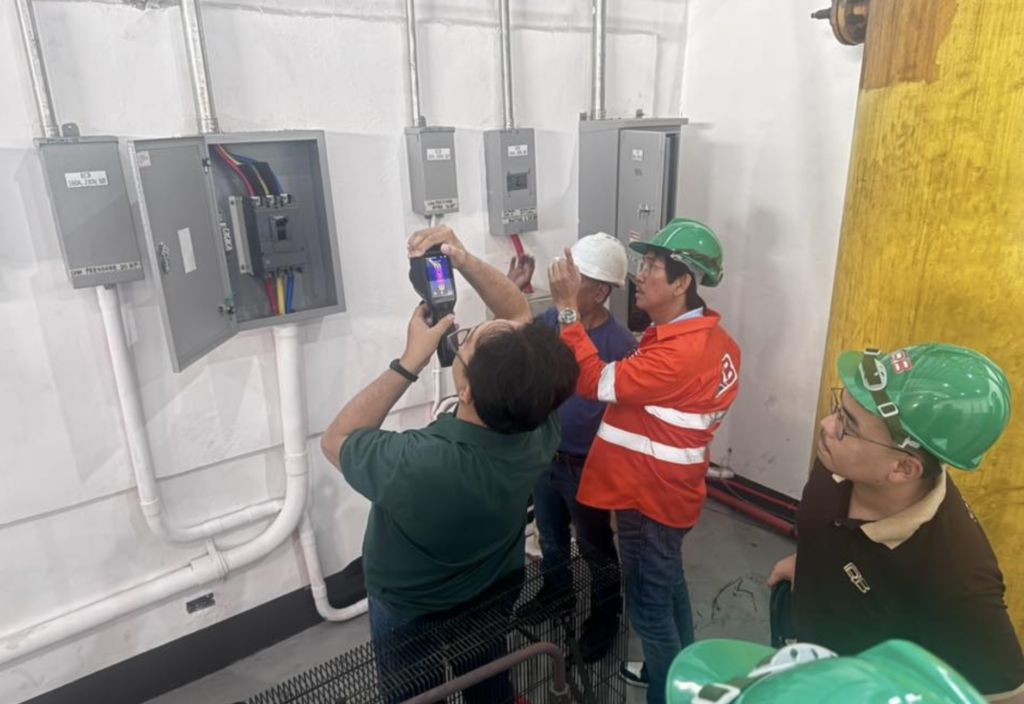

How Thermal Inspection of Electrical Panels Works

A professional electrical thermography inspection follows a systematic process:

1. Equipment remains energized and under normal load

2. Infrared cameras scan:

   • Main and sub panel boards

   • Switchgear

   • MCCs

   • Transformers

   • Cable terminations

3. Thermal images capture temperature differences

4. Hot spots are analyzed and compared to normal reference points

5. Findings are categorized by risk level

This approach allows inspectors to identify exact failure points without opening circuits or shutting down equipment.

Common Electrical Fire Risks Detected Through Thermography

In real-world inspections, thermography frequently reveals:

• Loose breaker terminals

• Overheated busbars

• Imbalanced phase loading

• Corroded cable lugs

• Overloaded feeders

• Defective breakers or contactors

Each of these conditions significantly increases the risk of electrical fire, downtime, or equipment damage if not corrected promptly.
