Electrical Thermography in Philippine Factories: How Infrared Inspection Prevents Fires, Failures, and Costly Shutdowns
Infrared thermography electrical inspection Philippines
Every year, electrical fires destroy Philippine factories, warehouses, and commercial buildings — claiming lives, equipment, and livelihoods. The tragedy is that the vast majority of these fires were predictable and preventable. The warning signs were there, invisible to the naked eye but perfectly visible to an infrared camera. Electrical thermography is the process of using specialized infrared cameras and trained engineers to detect abnormal heat patterns in electrical systems — finding hot spots, loose connections, overloaded circuits, and failing components before they cause fires, explosions, or catastrophic equipment failures. ETCZ Corp is one of the Philippines' leading providers of electrical thermography services. This comprehensive guide explains everything you need to know about electrical thermography — how it works, what it detects, what a professional inspection involves, and why every industrial facility in the Philippines should schedule a thermographic inspection today.
How Electrical Thermography Works
Electrical thermography, also called infrared (IR) thermography or thermal scanning, exploits a fundamental physical principle: every component carrying electrical current generates heat in proportion to its resistance and the square of the current flowing through it (P = I²R). A healthy, properly installed electrical connection has very low resistance and therefore generates minimal heat. A loose, corroded, or damaged connection has higher resistance and therefore generates measurably more heat.
An infrared camera detects thermal radiation (heat) emitted by surfaces and converts it into a visual thermal image (thermogram) where different temperatures appear as different colors. In the standard color palette used by ETCZ Corp, cool areas appear blue or purple, while progressively hotter areas appear green, yellow, orange, and finally red or white.
When an ETCZ Corp thermographer scans an electrical panel under load, the thermal image immediately reveals any component running at a higher-than-normal temperature. A loose lug connection, for example, might show up as a bright orange or red spot on an otherwise cool panel. This hot spot indicates a developing failure that, if not corrected, will continue to worsen until it causes an arc fault, a fire, or a catastrophic failure.
The power of thermography is that it is entirely non-invasive and non-intrusive. The ETCZ Corp thermographer never needs to touch or de-energize the equipment to perform the inspection. The facility continues to operate normally throughout the inspection, with zero impact on production.
The 12 Most Common Electrical Problems Found During Thermographic Inspections
ETCZ Corp’s thermographers have inspected hundreds of industrial facilities throughout the Philippines. Here are the twelve most common electrical problems detected during our thermographic inspections:
- Loose Bus Bar and Cable Lug Connections: The single most common finding. Connections loosen over time due to thermal cycling, vibration, and improper installation. A loose connection under 1,000 amps can reach hundreds of degrees Celsius in minutes.
- Overloaded Circuits: Circuit breakers carrying more current than their rating show up as uniformly hot components — often an entire branch circuit rather than a single connection.
- Three-Phase Load Imbalance: When one or two phases of a three-phase system carry significantly more current than the third, the overloaded phase(s) run hotter than the others. This is easily identified in a thermal scan.
- Failing Circuit Breakers: Breakers with deteriorated contacts or mechanisms often run hotter than healthy units even at the same current level.
- Corroded Connections: Corrosion at terminals and bus bar joints increases resistance and generates heat.
- Damaged or Undersized Cables: Cables carrying more current than their ampacity rating become uniformly warm along their length — visible even through cable trays.
- Transformer Hotspots: Developing insulation failures and cooling system problems in transformers can be detected through thermal imaging of the transformer tank and cooling radiators.
- Motor Overheating: Motors running at elevated temperatures due to overloading, poor ventilation, failing insulation, or bearing problems are easily identified.
- Harmonic Heating in Neutral Conductors: In facilities with large numbers of nonlinear loads (variable frequency drives, computers, UPS systems), the neutral conductor can carry currents higher than the phase conductors due to harmonic currents — potentially causing overheating.
- Failing Power Factor Correction Capacitors: Deteriorating capacitors develop hot spots that are clearly visible in thermal images.
- Switchgear Contact Deterioration: Main switch and isolator contacts that have deteriorated through arcing or corrosion run hotter than healthy contacts.
- Ground Fault Conditions: In some cases, developing ground fault conditions create detectable heat signatures.
What to Expect During an ETCZ Corp Thermographic Inspection
An ETCZ Corp electrical thermographic inspection is a systematic, professional process conducted by trained and experienced thermographers. Here is what to expect:
PRE-INSPECTION PREPARATION: ETCZ Corp will request a complete electrical single-line diagram and panel schedule before the inspection. We will develop a comprehensive inspection plan covering all electrical equipment to be inspected. We will coordinate with your electrical team to ensure that all equipment is energized and operating under representative load conditions during the inspection. (Equipment must be under at least 40% of rated load for thermographic inspection to be meaningful.)

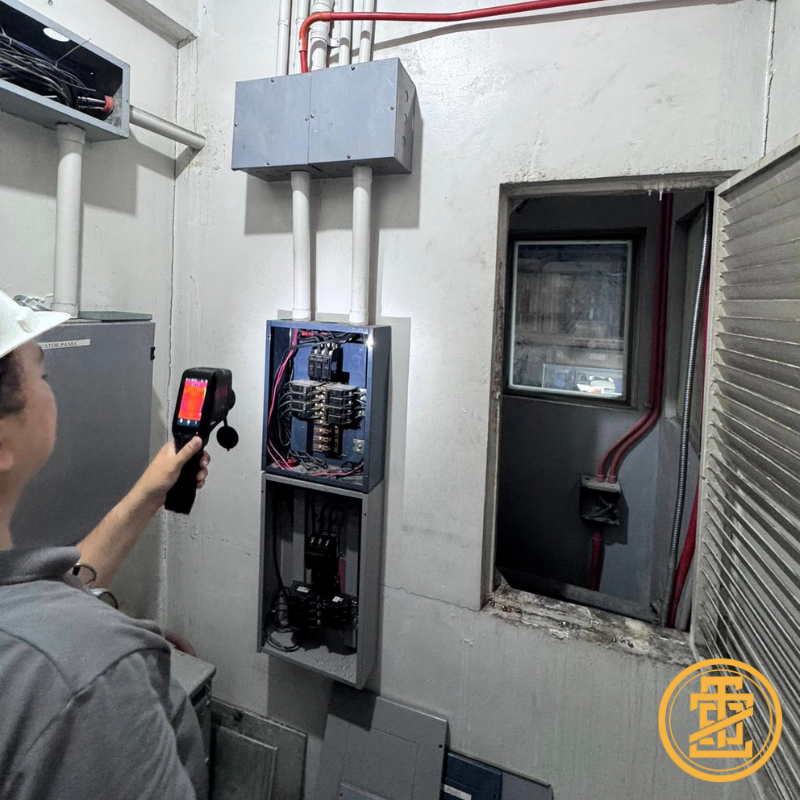

DAY OF INSPECTION: Our thermographer arrives with a calibrated, high-resolution infrared camera (typically FLIR brand) and all necessary personal protective equipment (PPE) for electrical work. We will open panel boards one at a time and perform a systematic thermal scan of all components. We simultaneously capture both thermal and visible-light images for each finding. We perform a complete scan of all panel boards, transformers, motors, cable trays, and accessible junction boxes throughout the facility.
For a medium-sized factory with 50-100 panel boards and distribution equipment, the inspection typically takes one full day.
POST-INSPECTION REPORT: Within 3-5 business days, ETCZ Corp delivers a comprehensive thermographic inspection report that includes: • An executive summary of findings • Severity classification of all anomalies found • Full-color thermal images and visible-light comparison images for each finding • Temperature data and delta-T calculations • Specific corrective action recommendations for each finding, prioritized by severity • Overall electrical system health assessment
FOLLOW-UP SUPPORT: ETCZ Corp can provide electrical repair services to address all findings, or we can provide technical oversight of repairs performed by your in-house electrical team. We also offer follow-up verification inspections to confirm that corrective actions have been effective.
Regulatory and Insurance Requirements for Electrical Thermography
In the Philippines, the Bureau of Fire Protection (BFP) requires that commercial and industrial buildings undergo regular fire safety inspections, which include the condition of the electrical system. Many insurance carriers that provide commercial property and business interruption coverage specifically require documented evidence of regular electrical thermographic inspections as a condition of coverage — or provide premium discounts to facilities with documented inspection programs.
Philippine Electrical Code (PEC) provisions related to electrical maintenance also create implicit obligations for industrial facility operators to maintain their electrical systems in safe operating condition. An undocumented, uninspected electrical system that causes a fire will create significant legal and regulatory exposure for the facility operator.
ETCZ Corp’s thermographic inspection reports are professionally prepared and formatted to satisfy the documentation requirements of insurers, regulatory agencies, and industrial park developers. Our reports are signed and certified by our licensed Professional Electrical Engineers.
Several of the industrial parks in Luzon where ETCZ Corp works — including some facilities in Laguna Technopark and Carmelray — now require annual thermographic inspections as part of their facility management requirements. ETCZ Corp is an approved thermographic inspection provider for multiple industrial park operators.
The ETCZ Corp Thermography Advantage
When you choose ETCZ Corp for electrical thermographic inspection, you are not just hiring a company with a thermal camera. You are engaging a team of experienced industrial electrical engineers who understand what they are looking at and what to do about it.
Our thermographers are:
• PRC-licensed electrical engineers or work under the direct supervision of licensed engineers
• Trained in thermographic methodology and thermal image interpretation
• Experienced in industrial electrical systems — they understand what normal looks like and what normal doesn’t look like
• Equipped with calibrated, high-resolution FLIR infrared cameras
• Able to provide immediate, actionable guidance on the severity and urgency of findings
ETCZ Corp combines thermographic inspection with our broader PMS capabilities, meaning that when we find a loose connection or a failing component, we can fix it immediately or schedule the repair as part of our ongoing maintenance program.
We serve industrial facilities throughout Luzon — from Metro Manila and Rizal to Laguna, Batangas, Cavite, Bulacan, and Pampanga. Our team is mobile, well-equipped, and experienced in working within the specific requirements of PEZA zones, industrial parks, and large manufacturing companies.
How to Choose the Right Industrial Electrical Contractor in the Philippines
Choosing the wrong electrical contractor for your industrial facility can result in code violations, unsafe installations, equipment damage, production downtime, and legal liability. Here is what to look for when selecting an industrial electrical contractor in the Philippines:
- PRC-Licensed Electrical Engineers: Insist on a contractor whose projects are supervised and signed off by Professional Electrical Engineers (PEEs) registered with the Philippine Regulatory Commission. All ETCZ Corp projects are led by licensed engineers.
- Master Electrician Certification: Field work must be performed by or under the supervision of Master Electricians licensed by the PRC. ETCZ Corp employs certified Master Electricians on all industrial projects.
- Track Record in Industrial Projects: Ask for a portfolio of completed industrial electrical projects similar to yours. ETCZ Corp has an extensive portfolio of factory, warehouse, and industrial park projects throughout Luzon.
- Accreditation and Partnerships: Look for contractors accredited by MERALCO, DOE, and industrial park developers. ETCZ Corp holds relevant accreditations and has established working relationships with major distribution utilities.
- Comprehensive Service Capability: The best industrial electrical contractors can handle everything from design and installation to maintenance and emergency repair. ETCZ Corp offers a complete suite of industrial electrical services under one roof.
- Financial Stability and Insurance: Industrial electrical projects involve significant financial commitments. Ensure your contractor is financially stable and carries appropriate insurance coverage.
- Safety Record: Ask about the contractor’s safety program and incident record. ETCZ Corp maintains a strong safety culture with zero tolerance for electrical safety shortcuts.
FAQ
Electrical thermography inspection uses infrared cameras to detect heat patterns in electrical systems, identifying overheating components, loose connections, and potential failures before they cause downtime or fire incidents.
Infrared thermography detects abnormal heat buildup in panel boards, cables, and equipment. These hot spots indicate faults that, if left unresolved, can lead to electrical fires or system failure.
Thermography inspections typically cover panel boards, switchgear, transformers, motor control centers (MCC), cables, and other critical power distribution components within industrial facilities.
Factories should perform thermography inspections at least once a year. High-load or continuous operations may require more frequent inspections to ensure safe and reliable performance.
Professional contractors use certified equipment, follow proper inspection standards, and provide detailed analysis and reports. This ensures accurate detection of issues and helps prevent costly downtime and electrical hazards.
