Industrial Electrical Panel Boards in the Philippines: Custom Design, Fabrication, and Best Practices

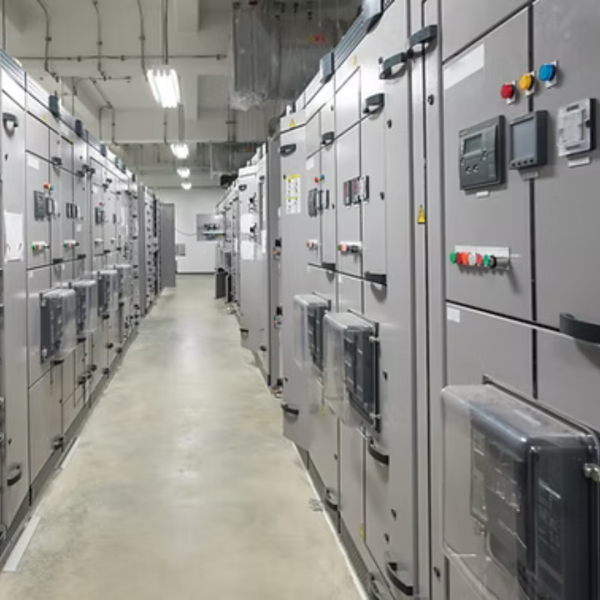

Why Custom Panel Boards Are Critical to Industrial Operations
In over three decades of working with factories, commercial buildings, and industrial plants, one truth stands out:
👉 The reliability of your entire operation depends on your electrical panel boards.
Panel boards are not just enclosures filled with breakers—they are the control center of power distribution, the first line of protection, and the foundation of safe, uninterrupted operations.
In the Philippine industrial landscape—where facilities operate under high load demand, fluctuating voltage conditions, and environmental stress—custom-designed and properly maintained panel boards are non-negotiable.
This guide walks you through everything you need to know about industrial electrical panel boards, from design and fabrication to installation and long-term maintenance—based on real-world experience.
What Is an Industrial Electrical Panel Board?
An industrial electrical panel board is a centralized system that:
- Receives electrical power from a source (utility, transformer, generator)
- Distributes power to circuits and equipment
- Protects systems from overloads and faults
It typically includes:
- Circuit breakers (MCCB, ACB)
- Busbars
- Protective devices
- Metering components
- Control systems
Unlike residential panels, industrial panel boards are built to handle:
- Continuous heavy loads
- Motor-driven equipment
- Complex electrical distribution networks
Types of Industrial Panel Boards Used in the Philippines
1. Main Distribution Panel (MDP)
The primary panel receiving power from the transformer or utility.
2. Sub Distribution Panel (SDP)
Distributes power to specific zones or departments.
3. Power Panel Board
Supplies heavy equipment such as motors and machinery.
4. Lighting Panel Board
Dedicated to lighting systems for better control and safety.
5. Motor Control Panels (MCC)
Used for controlling and protecting motors in industrial operations.
Why Custom Panel Board Design Matters
Many facilities make the mistake of using standard or undersized panel boards, which leads to:
- Frequent breaker tripping
- Overheating components
- Limited expansion capability
- Safety hazards
Custom Design Benefits
✔ Tailored to actual load demand
✔ Allows future expansion
✔ Improves system efficiency
✔ Enhances safety and compliance
At ETCZ Corp, panel boards are engineered based on:
- Load calculations
- Equipment requirements
- Environmental conditions
- Compliance standards

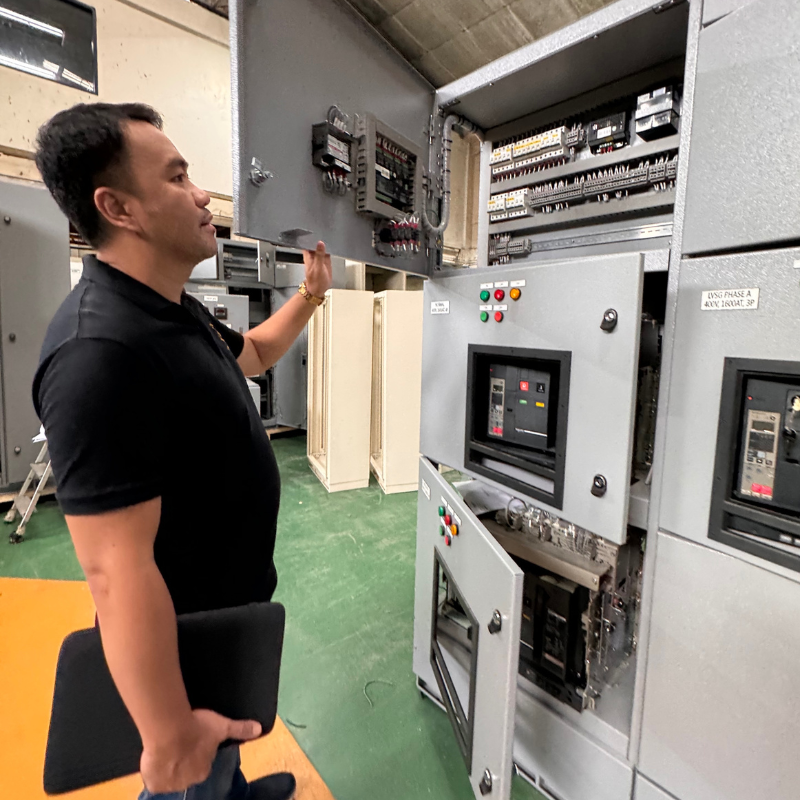

Panel Board Fabrication Process
1. Engineering Design
- Load analysis
- Single-line diagram (SLD) creation
- Protection coordination
2. Material Selection
- High-quality breakers
- Copper busbars
- Durable enclosures
3. Assembly
- Precise wiring
- Busbar installation
- Component integration
4. Testing and Quality Control
- Insulation resistance testing
- Functional testing
- Load simulation
5. Installation and Commissioning
- On-site setup
- System integration
- Final testing
Best Practices for Industrial Panel Boards
1. Proper Load Sizing
Always design for:
- Current demand
- Future expansion (20–30%)
2. Load Balancing
Unbalanced loads cause:
- Overheating
- Equipment stress
- Reduced efficiency
3. Separation of Loads
Separate:
- Power loads
- Lighting
- Control systems
4. Use of High-Quality Components
Cheap components lead to:
- Premature failure
- Increased maintenance cost
5. Regular Preventive Maintenance (PMS)
Routine PMS includes:
- Inspection
- Cleaning
- Tightening connections
- Thermography scanning
Common Problems Found in Panel Boards
- Overloaded circuits
- Loose electrical connections
- Corrosion and contamination
- Aging breakers
- Poor labeling and documentation
These issues often go unnoticed until major failure occurs.
Role of Thermography in Panel Board Maintenance
Infrared thermography detects:
- Hot spots
- Overheating breakers
- Loose connections
This allows early intervention before:
- Equipment damage
- Fire incidents
- Production downtime
Compliance with Philippine Electrical Standards
Industrial panel boards must comply with:
- Philippine Electrical Code (PEC)
- Utility company requirements
- Safety standards
Non-compliance can result in:
- Inspection failures
- Operational delays
- Increased liability
Industries That Require Industrial Panel Boards
- Manufacturing plants
- Warehouses and logistics hubs
- Commercial buildings
- Laboratories and healthcare facilities
- Industrial processing plants
Each industry requires specific panel board configurations.
Why Choose ETCZ Corp for Panel Board Solutions
ETCZ Corp provides:
- Custom panel board design
- Fabrication and installation
- Preventive maintenance services
- Thermography inspection
- Transformer and power system integration
With certified electrical engineers, ETCZ ensures:
✔ Safe and compliant systems
✔ Reliable performance
✔ Scalable solutions for future growth
FAQ
It distributes electrical power safely and protects equipment from overloads and faults.
Signs include frequent tripping, overheating, lack of capacity, and outdated components.
At least once a year, or more frequently for high-load industrial facilities.
Design, component selection, assembly, testing, and installation of electrical distribution systems.
It ensures the system matches your facility’s load, improves efficiency, and allows future expansion.
